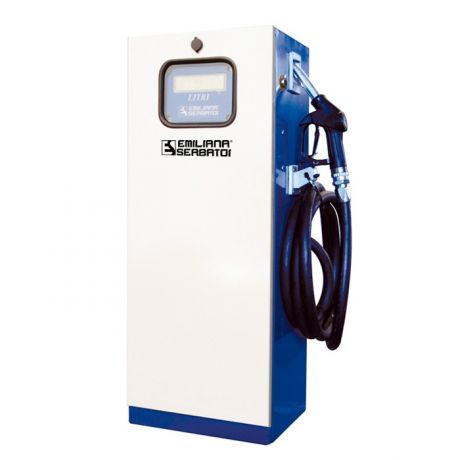

Diesel Fuel Dispenser, mod. ECO

The Eco Diesel Fuel Dispenser, provided with Ministerial approval for Class C fuels, includes the following features:

Main features:

• Corrosion-resistant steel chassis and panels.
• Compact rotary vane suction pump, cast iron body, flow rate 70 litres / min equipped with filter and internal by-pass valve.
• Three phases, 400V/50 Hz motor (pump) and single-phase 220V (Fuel management system) power supply.
• Four-piston meter, consisting of a sleeved body in which four pistons drive two connecting rods, guaranteeing enhanced reliability.
• Accuracy: +/-0.2%
• EEXD- ATEX certified motor in compliance with European Directive Atex 94/9/CE.
• Eltomatic pulser, high precision type.
• ZVA automatic fuel nozzle,
• 4 m antistatic flexible rubber hose.
• EC certified and approved for Class C fuels

DOWNLOAD ECO PDF
